Single-Screw Pulp Press
Single-Screw Pulp Press

Single-Screw Pulp Press

The CNBM Anyang Machinery Single Screw Press concentrator, also known as the spiral squeezing machine, is a dewatering device used for pulp processing. It effectively handles various pulp consistencies, ensuring uniform dryness and stable output rates of the concentrated pulp.

Category:

Equipments

Whatsapp:

+86-19693725000

E-mail:

info@cnbmaym.com

Contact Us
Inquiry Now

Descriptions：

Single Screw Press

The CNBM Anyang Machinery Single Screw Press concentrator, also known as the spiral squeezing machine, is a dewatering device used for pulp processing. It effectively handles various pulp consistencies, ensuring uniform dryness and stable output rates of the concentrated pulp. The CNBM Anyang Machinery Single Screw Press concentrator is primarily used in the black liquor extraction process.

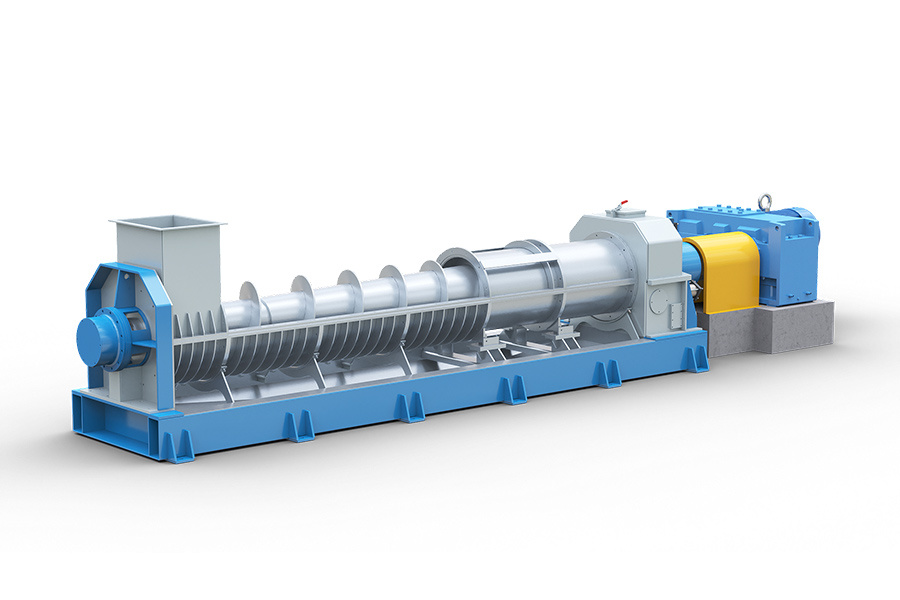

Single Screw Press concentrator consists mainly of a shell, a spiral shaft, and a water filtration drum.

In a single-screw press concentrator, the pulp is advanced by a spiral shaft with varying diameter and pitch, which exerts pressure on the pulp as the space gradually decreases in the direction of movement, achieving the goal of concentration.

CNBM Anyang Machinery Single Screw Press Advantages

1. Energy Efficient: Operates at low rotary speeds, leading to lower power consumption and reduced noise levels.

2. Innovative Design: The special structure prevents pulp from slipping, resulting in a high outlet pulp concentration.

3. High Dehydration Efficiency: Extracts up to 80% of black liquor from pulp, achieving excellent pulp dryness.

4. Versatile Applications: Suitable for various types of pulp, including straw, bamboo, bagasse, and wood pulp.

5. Odor and Spill Prevention: The shell design effectively prevents odor and black liquor spillover.

6. Mechanical Operation: Fully mechanical press dehydration requires no installation height, simplifying setup.

Single Screw Press Technical Parameters

Note：based on kraft pulp, wood pulpM

Model/
Specification

AMDL - I
600

AMDL - I
750

AMDL - I
1000

AMDL - I
1100

AMDL - I
1200

AMDL - I
1500

Screw Diameter（mm）

600

750

1000

1100

1200

1500

Production Capacity （kt/d）

40~50

50~70

100~120

120~140

140~160

180~200

Power （kw）

37

45

55

75

90

132

Net Weight （kg）

14000

16000

19000

21000

24000

32000

Inlet Concentration （%）

8~12

8~12

8~12

8~12

8~12

8~12

Outlet Concentration （%）

25~35

25~35

25~35

25~35

25~35

25~35

Single screw press Technical Parameters

Note：based on kraft wood pulp

Model/
Specification

AMDL - II
600

AMDL - II
750

AMDL - II
1000

AMDL - II
1500

Screw Diameter（mm）

600

750

1000

1500

Production Capacity （kt/d）

50~100

100~120

200~350

500~750

Power （kw）

90

160

315

500

Net Weight （kg）

9200

12500

19000

38000

Inlet Concentration （%）

4~12

4~12

4~12

4~12

Outlet Concentration （%）

25~30

25~30

25~30

25~30
